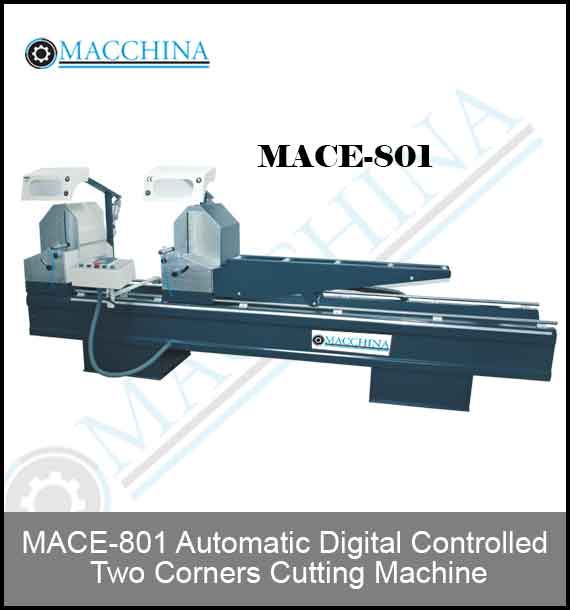

Automatic Digital Controlled Two Corners Cutting Machine

Automatic Digital Controlled Two Corners Cutting Machine

Macchina India

Category:

Description

  • Operates with 6 BAR air and 380v voltage.Suitable for cutting two corners on aluminium and pvc profiles.
  • Movable unit moves automatically at programmable size.
  • Cutting possible with cutting units bended to interior and Exterior angles at the range or 45-90.
  • Cutting units cut fast in accordance with the profile type programmed (door, case, middle, channel profile, etc) in the specified order.

Technical Parameter

Voltage/ Frequency380 V/ 50 HZ
Total Power2×2.2 KW
Air Pressure6-8 BAR
Air Consumption76 LT/MIN
Saw bladeφ450
Max. Profile Height180 MM
Max. Profile Width120 MM
Machine Length3900 MM
Machine Width1080 MM
Machine Height1350 MM
Machine Weight620 Kg
Conveyed Length1500 MM
Max. Cutting3320
Min. Cutting500 MM
